Far Infrared drying oven
Summary of use:
Far infrared drying oven adopts the new national science and technology commission key promotion of far infrared heating technology, far infrared radiation heating tube 2-15 microns far infrared ray, when absorbed by the heated object can be converted into heat energy, so as to obtain the effect of rapid drying, to shorten the production cycle, save energy and improve the quality of products such as the purpose, the product is suitable for use in universities and colleges, industrial and mining enterprises, health care, scientific research units, such as drying, baking, melting wax, curing, sterilization, heat treatment is used.
Characteristics:
1. The heater using far infrared heating tube, with efficient thermal radiation rate, fast drying was heated objects.
2. The shell is made of high quality cold-rolled steel plate, the surface adopts electrostatic spraying technology, novel appearance, strong and durable.
3. The working chamber is made of high quality stainless steel or galvanized sheet, which has high temperature resistance, corrosion resistance, no black smoke, high reflection efficiency, etc.
4. The middle has a double-layer tempered glass observation window, the door is easy to observe the situation in the cabinet,strong blast system with reasonable air duct design, make the temperature in the cabinet is moreeven.
5. Smoked pull type clapboard, easy to change the position, to apply to object placement.
6. Microcomputer intelligent controller, the PID parameter self-tuning, non-contact switch circuit, temperature control with temperature control of high precision and stable effect is good, can be a constant temperature time, limit alarm, etc.

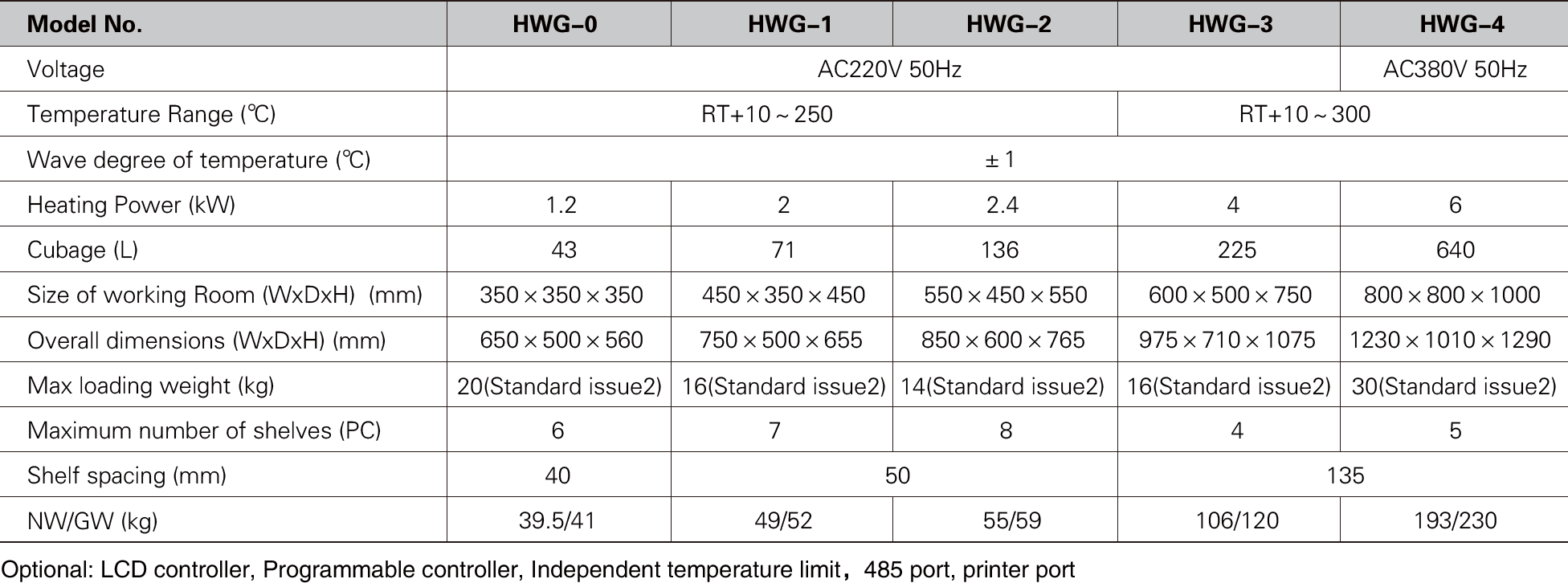

Major technical parameters :

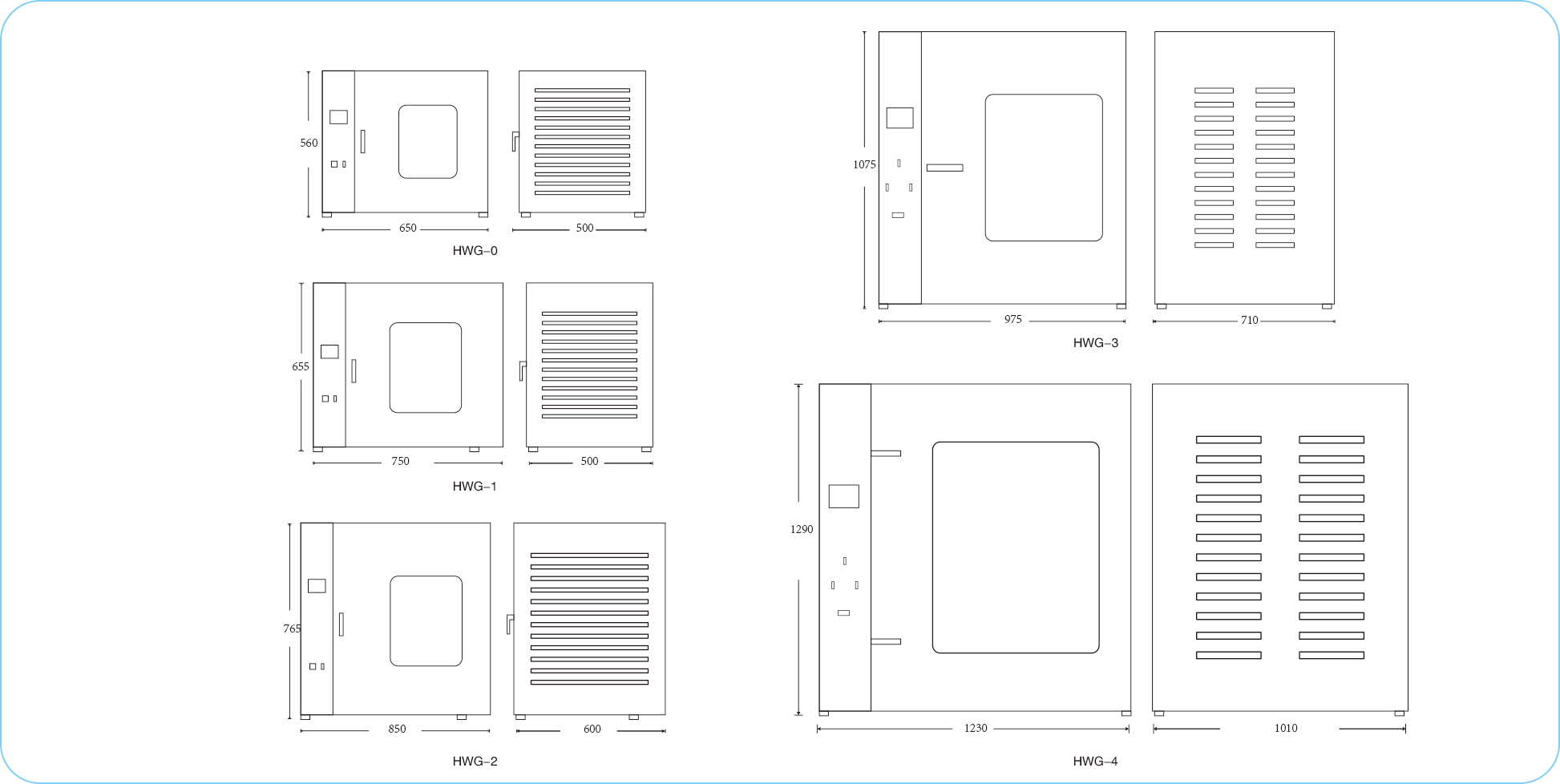

Dimension:
